ANDERSON MERGEPRO915
Send A Quote

Request Quote
Hi, my name is and I would like to get more information on this ANDERSON MERGEPRO915 .
I can be reached by email at or by phone at
.


Part #: MERGEPRO915
Mfg: ANDERSON
Category: TRACTOR ATTACHMENTS
SubCategory: HAY MERGER
Industry: AGRICULTURAL
Machine Size: TRACTOR
Attachment Size: 30' SWATH
List Price: $118,600.00 (not including Freight)
Inventory: MERGEPRO915: 0 AFS / 0 QOH / 0 QOO / 0 ISBF

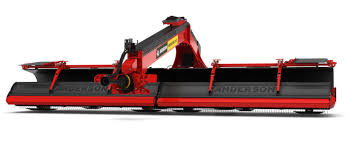

ANDERSON MERGE PRO915
Working width centre swath30 ft (9.15 m)
Working width side swath25 ft + 5ft swath (7.62 m + 1.52m swath)
Swath width centre swath4,6 ft (1.40m)
Swath width side swath with swathboard3 to 5 ft ( 0,91 to 1.52m)
Number of pick-up units2
Pick-up width (tine-to-tine)12.5 ft (3.81 m)
Transport width8.3 ft (2.53m)
Transport height11,4 ft (3.47m)
Transport length27.6 ft (8.41 m)
Height in transport position (for shipping purpose)10,4 ft (3.17m)
Min power flat ground (12km/h- 8mph)100 HP
Min power flat terrain (28km/h -18mph)**140 HP
Min power all other type of terrain (28km/h-18mph)**180 HP
PTO requirement1 3/8 Z21 1000 @ 800 RPM Standard configuration (PTO included)n1 3/8 Z6 540 @ 540 RPM compatible (PTO not included)
PTO RPM and equivalent optimal working speed800 RPM (from 0 to 28km/h)n540 RPM (from 0 to 20 km/h)
Max working speed18 mph (28 km/h)
Hydraulic38 GPM @ 800 RPM (133 L/min @ 800 RPM)n26 GPM @ 540 RPM (98 L/min @ 540 RPM)
Conveyor belt hydraulic motorHigh quality Hydraulic Piston Motor
Pickup hydraulic motorHydraulic motor @ 243 RPM @ 28 km/h (18 mph)
Oil reservoir capacity95 US gal (360 L)
Oil typeTDH
Oil Cooling systemStandard
Tires on transport chassis560 / 45-22.5 RADIAL
Conveyor length12.8 ft (3.9m)
Conveyor width36 in (0.92 m)
Discharge capabilityright left center
Conveyor direction control from tractor cabyes
Pickup height0-3 in ( 7.2 cm)
Hitch2 points Category 2 & 3
Electronic variable pickup speed control from tractor cabYes
Road lights and signalingYes
Required tractor hydraulic connections2 outlets standard ( 1 for option)
Approximate machine weight5000kg ( 11000lbs)
Adjustable skid shoesStandard
