BAUMALIGHT | CF772-HX590

BAUMALIGHT CF772-HX590

Send A Quote

Request Quote

Hi, my name is

Invalid value

and I would like to get more information on this BAUMALIGHT CF772-HX590 .
I can be reached by email at

Invalid value

or by phone at

Invalid value

Part #:

CF772-HX590

Mfg:

BAUMALIGHT

Category:

SKID STEER ATTACHMENTS

SubCategory:

BRUSH CUTTER SKID STEER HIGH FLOW

Industry:

CONSTRUCTION

Machine Size:

SSL 30GPM-50GPM

Attachment Size:

72" WORKING WIDTH

List Price:

$15,960.00 (not including Freight)

Inventory:

CF772-HX590: 0 AFS / 0 QOH / 0 QOO / 0 ISBF

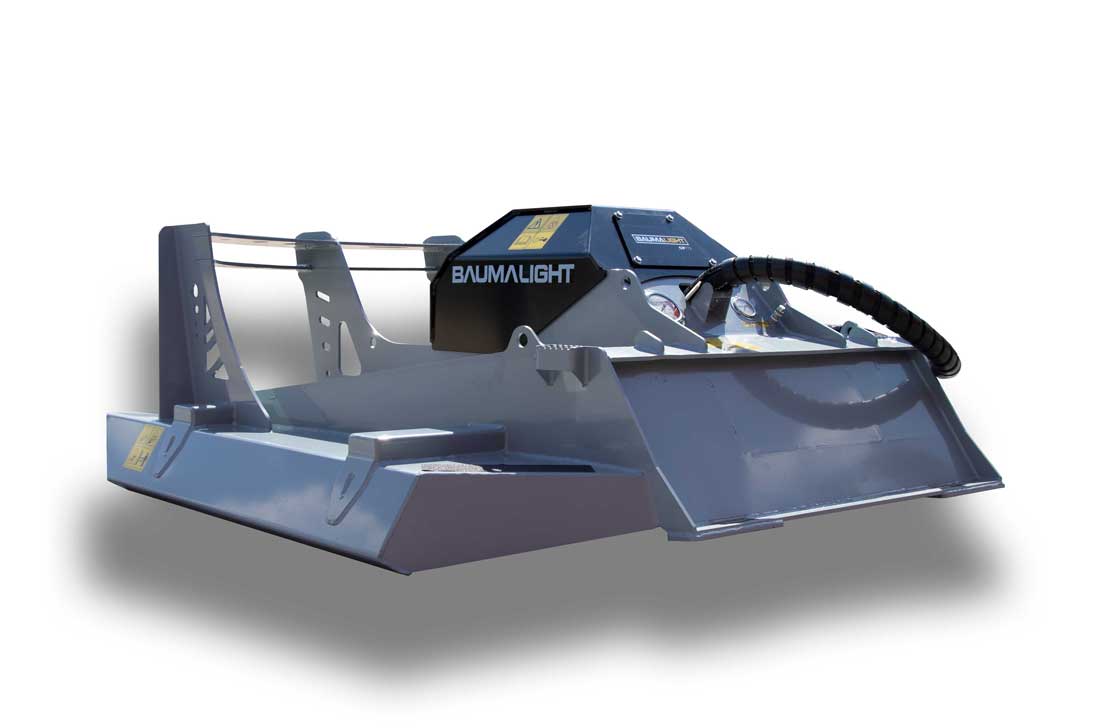

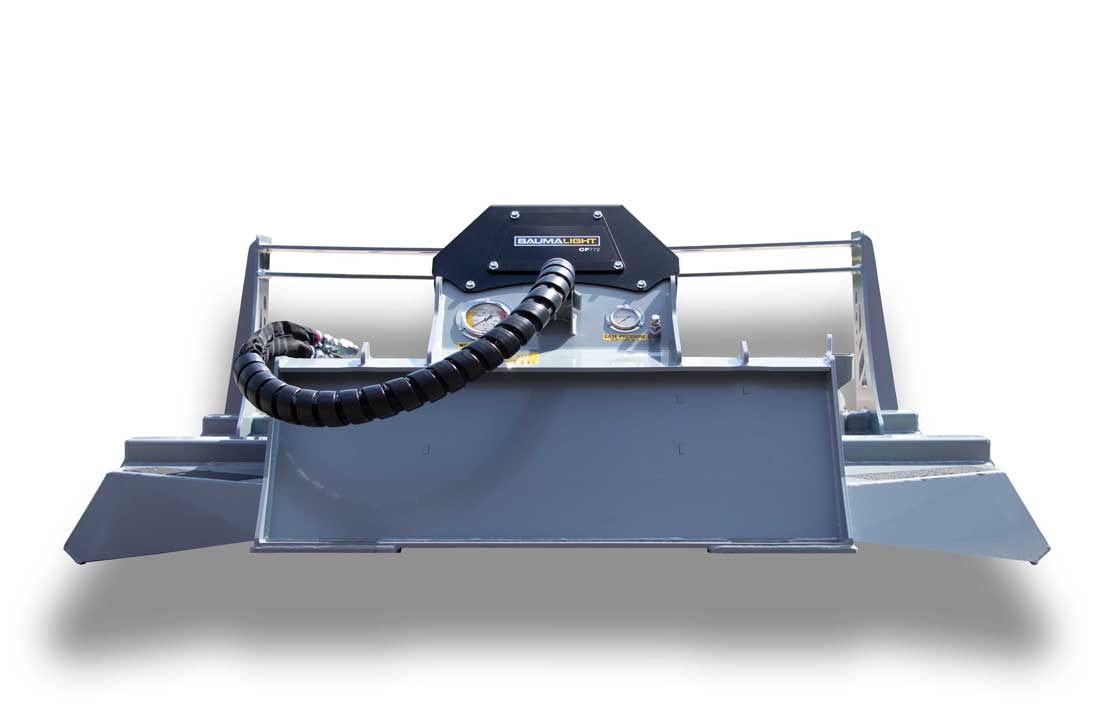

CF772 Open Front Skid Steer Rotary Brush Cutter Model

The rugged frame of the CF772 heavy-duty rotary brush cutter houses four AR400 blades featuring an 83" path width. The 1/4” steel deck is designed to stand up and perform in rough terrain while cutting trees, brush, unwanted weeds and grass. The 72" wide open mouth of this unit allows you to cut down larger trees in a sawing action. Standard on the 700 series rotary brush cutter, the Brush Bar helps to funnel brush under the Rotary Brush Cutter to the AR400 blades. The serrated open front design of the push bar works to push the taller, heavier brush to the hardened blades, making quick work of woody brush and saplings.

Model No.	CF360	CF372	CF560	CF572	CF772
Available Motor Options	M450, M550, M650	M450, M550, M650	M450, M550, M650	M450, M550, M650	HX590
Recommended GPM	Check Motor Options	Check Motor Options	Check Motor Options	Check Motor Options	Check Motor Options
Max Brush Felling Size	2"	2"	4"	4"	6"
Discharge Protection	Link Chain Curtain Front and Back	Link Chain Curtain Front and Back	Open Front with Push Bar Link Chain Curtain on Back	Open Front with Push Bar Link Chain Curtain on Back	Open Front with Push Bar
Path Width	70"	82"	70"	82"	83"
Cutting Width	60"	72"	60"	72"	72"
Low Cutting Height	2.5"	2.5"	2.5"	2.5"	2.5"
Number of Blades	2	2	4	4	4
Attachment Type	Universal Skid-Steer Plate	Universal Skid-Steer Plate	Universal Skid-Steer Plate	Universal Skid-Steer Plate	Universal Skid-Steer Plate
Maximum HP	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer
Min Carrier Weight	4,000 lb	4,500 lb	4,500 lb	5,000 lb	6,000 lb
Max Carrier weight	8,000 lb	8,500 lb	10,500 lb	12,000 lb	18,000 lb
System Protection	Built In Hydraulic	Built In Hydraulic	Built In Hydraulic	Built In Hydraulic	Built In Hydraulic
Dimensions (LxWxH)	88"x72"x36"	90"x84"x36"	88"x72"x36"	90"x84"x36"	84"x83"x30"
Deck Structure	1/4" steel	1/4" steel	1/4" steel	1/4" steel	1/4" steel
Unit Weight	1342 lbs.	1390 lbs.	1540 lbs.	1570 lbs.	1960 lbs.

Feature

Description

Photo (if available)

Price

BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT

The CF772 Rotary Brush Cutter's blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.

$0.00

EASY ACCESS PANELS FOR SERVICE

Built for the long haul, CF772 has removable panel for easier access and servicing.

$0.00

HOSE ARMOUR

Standard on all Rotary brush cutter models is Hose Armour. This is a tough wrap which coils around the hoses and protects them from the harsh environment of brush cutting. The armour helps to prevent any punctures from fallen brush or trees.

$0.00

FREE BLADE SET

All CF772 Rotary brush cutter come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping ski

$0.00

SERRATED TEETH ROTOR

CF772 uses 3/4" heavy duty circular rotor designed with unique serrated edges. Serrated edge on the rotor helps to increase the mulching action and it also protects the load adaptor bearing setup.

$0.00

SUPPLIED WITH BENT AXIS PISTON MOTOR

Our Industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for pruning, trimming and land clearing. Built to last, these reliable motors can double the power of your output flow.

$0.00

CASE DRAIN – VENT TO ATMOSPHERE

To prevent pressure relief activation on the motor seal, the rotary brush cutter CF772 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you.

$0.00

OPEN FRONT WITH PUSH BAR

The open front with push bar provides extra control against thick brush and the felling of trees, while the teeth hold the brush as the blades chew it up from below.
