Part #:

CF360-M450

Mfg:

BAUMALIGHT

Category:

SKID STEER ATTACHMENTS

SubCategory:

BRUSH CUTTER SKID STEER STANDARD FLOW

Industry:

CONSTRUCTION

Machine Size:

SSL

Attachment Size:

60" WORKING WIDTH

List Price:

$7,320.00 (not including Freight)

Inventory:

CF360-M450: 0 AFS / 0 QOH / 0 QOO / 0 ISBF

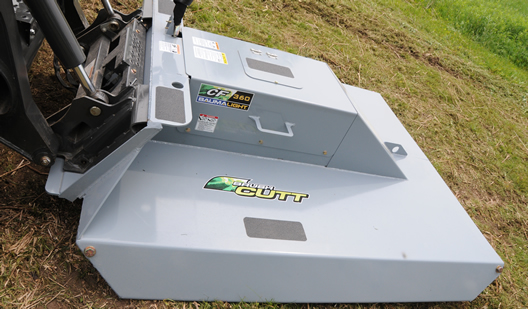

CF360 Skid Steer Rotary Brush Cutter Model

The rugged frame of the CF360 heavy-duty rotary brush cutter houses two AR400 blades featuring a 70" path width. The 1/4” steel deck is designed to stand up and perform in rough terrain while cutting small trees, brush, unwanted weeds and grass. The 60" mouth of this unit is protected by a heavy-duty chain that controls flying debris, but still allows brush to easily enter. The rear of the unit is also guarded by a chain curtain so standing brush enters and mulched debris exits as you break new trails, clear ditches, construction, property sites, and other overgrown areas. Chain curtains are standard front and rear, on the 300 series. Model No. CF360 Available Motor Options M450 Recommended GPM Check Motor Options Max Brush Felling Size 2" Discharge Protection Link Chain Curtain Front and Back Path Width 70" Cutting Width 60" Low Cutting Height 2.5" Number of Blades 2 Attachment Type Universal Skid-Steer Plate Maximum HP Check Flow & PSI on Skid Steer Min Carrier Weight 4,000 lb System Protection Built In Hydraulic Dimensions (LxWxH) 88"x72"x36" Deck Structure 1/4" steel Unit Weight 1342 lbs.

Model No.	CF360	CF372	CF560	CF572	CF772
Available Motor Options	M450, M550, M650	M450, M550, M650	M450, M550, M650	M450, M550, M650	HX590
Recommended GPM	Check Motor Options	Check Motor Options	Check Motor Options	Check Motor Options	Check Motor Options
Max Brush Felling Size	2"	2"	4"	4"	6"
Discharge Protection	Link Chain Curtain Front and Back	Link Chain Curtain Front and Back	Open Front with Push Bar Link Chain Curtain on Back	Open Front with Push Bar Link Chain Curtain on Back	Open Front with Push Bar
Path Width	70"	82"	70"	82"	83"
Cutting Width	60"	72"	60"	72"	72"
Low Cutting Height	2.5"	2.5"	2.5"	2.5"	2.5"
Number of Blades	2	2	4	4	4
Attachment Type	Universal Skid-Steer Plate	Universal Skid-Steer Plate	Universal Skid-Steer Plate	Universal Skid-Steer Plate	Universal Skid-Steer Plate
Maximum HP	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer	Check Flow & PSI on Skid Steer
Min Carrier Weight	4,000 lb	4,500 lb	4,500 lb	5,000 lb	6,000 lb
Max Carrier weight	8,000 lb	8,500 lb	10,500 lb	12,000 lb	18,000 lb
System Protection	Built In Hydraulic	Built In Hydraulic	Built In Hydraulic	Built In Hydraulic	Built In Hydraulic
Dimensions (LxWxH)	88"x72"x36"	90"x84"x36"	88"x72"x36"	90"x84"x36"	84"x83"x30"
Deck Structure	1/4" steel	1/4" steel	1/4" steel	1/4" steel	1/4" steel
Unit Weight	1342 lbs.	1390 lbs.	1540 lbs.	1570 lbs.	1960 lbs.

Feature

Description

Photo (if available)

Price

TWO CUTS PER PASS

As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary brush cutter advances forward. The curved cutting tips of the slasher blades give the Rotary brush cutter two cuts per pass of each blade. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 26–52 slashes per second with devastating results.

$0.00

GEAR BOX

Standard on all Rotary Brush Cutter models is a relief valve. Set at 3,000 psi, this valve disengages the driveline if the hydraulic system pressure is too great, thereby protecting both the skidsteer and the Rotary brush cutter. The Rotary brush cutter uses a bevel gearbox capable of handling up to 90HP for final drive output. More durable than conventional direct drive setups, these gearboxes prevent shocks from cutting being passed to the drive motor.

$0.00

HOSE ARMOUR

Standard on all Rotary Brush Cutter models is Hose Armour. This is a tough wrap which coils around the hoses and protects them from the harsh environment of brush cutting. The armour helps to prevent any punctures from fallen brush or trees.

$0.00

SLASHER BLADES

Crafted from 1/4" AR 400 steel, the unique profile of the slasher blades provides increased cutting surface. The blade’s thin reversible profile continuously provides a sharp edge.

$0.00

BLADE MOUNT

To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins. The blade mount uses a fully welded collar to drop the blade; this spacing helps to reduce the blade from binding while in operation.

$0.00

FRONT & REAR CHAIN CURTAINS

A heavy-duty chain curtain reduces discharge of debris. Unlike traditional chain curtains, Baumalight’s Rotary Brush Cutter uses a curtain rod setup that is free of welds. This setup allows the chain to absorb the impacts and places less strain on the welded link for longer curtain life.

$0.00

SHIELD

To protect the output shaft from impact or contamination caused by debris, each model of Rotary Brush Cutter is finished off with a heavy-duty output shaft shield.
