Category:
|

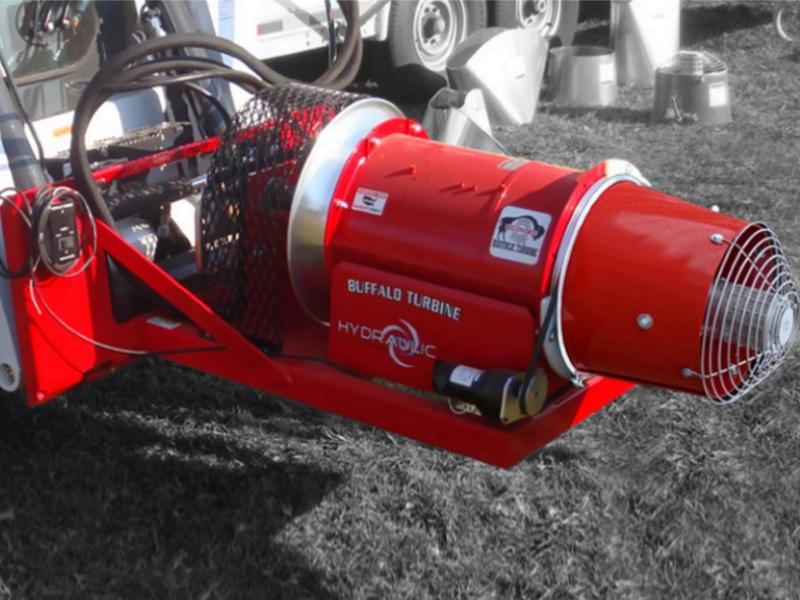

DUST & ODOR CONTROL EQUIPMENT
|
|
Attachment Size:
|
Horizontal Up to 125 ft. / Vertical Up to 50 ft.
|
- Misting System Gyratory Atomizing Nozzle
- Hose Input 3/4" Utility / Garden Hose
- Minimum Water Volume 1/3 Gallon Per Minute
- Maximum Water Volume 20 Gallons Per Minute @ 120 psi
- Minimum Water Pressure 40 psi
- Maximum Water Pressure 120 psi
- Droplet size 50-200 Microns
- Throw Distance Horizontal Up to 125 ft. in Neutral Wind Conditions
- Throw Distance Vertical Up to 50 ft. in Neutral Wind Conditions
- Warranty 10 Year Manufacturer Warranty
- Motor Warranty 2 Year Warranty Input Power Hydraulic motor Input RPM Up to 3600 RPM
- Outlet Size 12”
- Nozzle rotation 360°
- Frame Length 39”
- Overall Length with Nozzle 64”
- Width 46” Max
- Height with nozzle in upright position 32”
- Weight 300 lbs.
- Hydraulic Motor Displacement size .915 cu.in./Rev
- Required mininum hydraulic pressure (to operate @ stated values) 2900 psi
- Maximum Hydraulic flow rate 40 GPM
- Mounting (any position) SAE “A” size, 2 bolt
- Shaft Seal Max. Pressure 150 psi
|
