TEAGLE T505FSM
Request Quote
Hi, my name is and I would like to get more information on this TEAGLE T505FSM .
I can be reached by email at or by phone at
.


Part #: T505FSM
Mfg: TEAGLE
Category: TRACTOR ATTACHMENTS
Sub-Category: BALE BLOWER TRACTOR
Industry: AGRICULTURAL
Machine Size: TRACTOR 120HP MIN
Attachment Size: MAX BALE 62"
List Price: $28,128.00 (not including Freight)
Shipping: Call for Shipping Quote
Inventory: T505FSM: 0 AFS / 0 QOH / 0 QOO / 0 ISBF

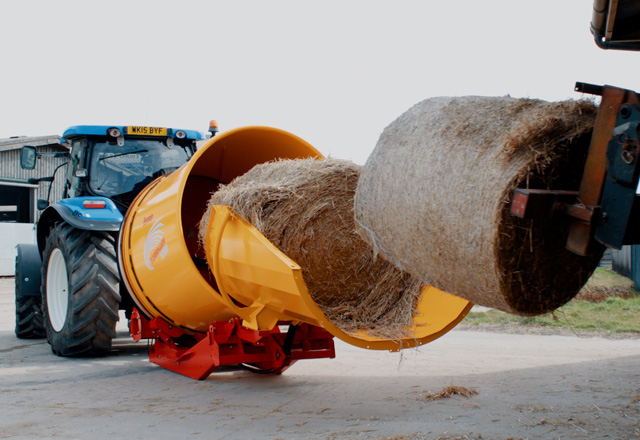

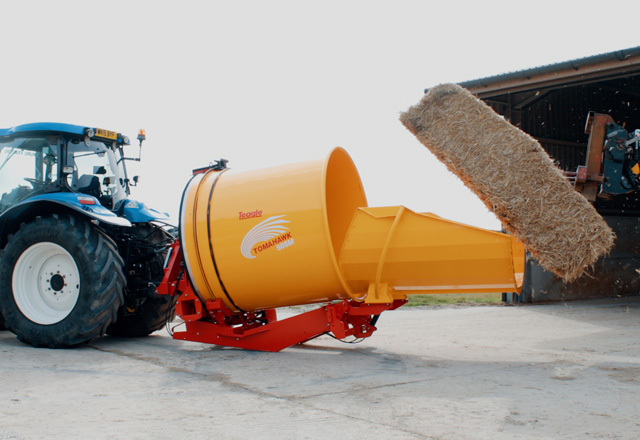

TOMAHAWK 505FSM
  • DRUM DIAMETER 72”
  • MAXIMUM ROUND BALE DIAMETER 62”
  • MAXIMUM RECTANGULAR BALE SIZE 48”X 48”
  • HEIGHT OVERALL WITH MACHINE ON GROUND 102”
  • WIDTH WITH CHUTES CLOSED 80”
  • LOWER CHUTE DISCHARGE HEIGHT 22”
  • UPER CHUTE DISCHARGE HEIGHT 50”
  • LENGTH OVERALL 162”
  • TRANSPORT WIDTH 80”
  • OPERATING WIDTH 123”
  • STRAW GIRAFFE CHTE DISCHARGE HEIGHT 72”
  • WEIGHT 3055 LB.
  • PTO POWER REQUIRED 120HP
  • STRAW – SHORT CHOP
  • FEED BALED SILAGE – NO
  • FEED CLAMP SILAGE – NO
  • BED CUBICLES/STRAW PROCESSING – YES
  • BED LOOSE HOUSING - NO
